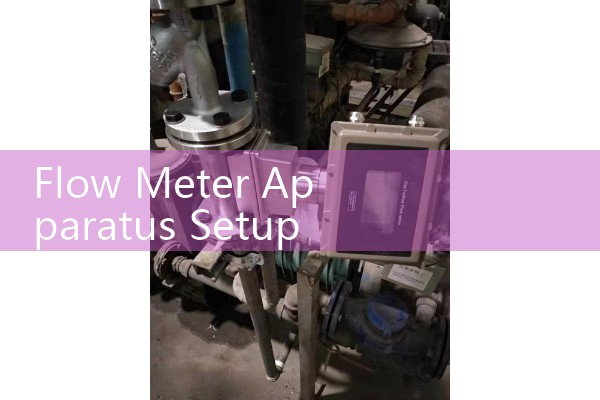

Flow Meter Apparatus Setup: Physics Lab Fluid Mechanics Demonstration and Sizing
Quick Answer: A physics lab flow meter apparatus needs a clean pipe run, a stable pump or head tank, a flow meter matched to the fluid, and a digital readout or data logger. For water demonstrations in physics and fluid mechanics, a DN15 to DN50 electromagnetic flow meter from Silver Automation Instruments gives repeatable readings with no moving parts. For oil or air tests, select an oval gear or thermal mass meter. Send your fluid type, pipe size DN, flow range and pressure to get a specific model and quote.
Here is the thing. A flow meter apparatus setup for a physics lab is only as stable as its pipe run and sensor match. Most university labs use a water circulation loop. A pump draws water from a sump tank. The water passes through a valve, a flow straightener, the flow meter under test, a rotameter for visual comparison, and returns to the tank.
Typical Flow Meter Apparatus Components
You need a pump with enough head to cover pipe losses. You need a sump tank of 50 to 200 liters. You need clear PVC pipe for visual flow. Use DN15, DN25, or DN40 pipe for bench scale setups. Install a flow straightener of at least 10 pipe diameters upstream of the meter. Use a gate or ball valve downstream for back pressure. Connect a 4-20 mA signal to a paperless recorder or a simple PLC trainer.
In practice, we have seen many lab rigs with air bubbles trapped in the pipe. That causes unstable readings on electromagnetic flow meters. Install a vent valve at the highest point or run the pipe slightly uphill toward the return tank.
Which Silver Instruments Flow Meter Fits a Physics Lab
For water and salt tracer tests, choose an electromagnetic flow meter. It measures conductive liquids with no pressure drop. We recommend the DN15 and DN25 electromagnetic flow transmitter for lab benches. It outputs 4-20 mA HART and can run on 24 V DC. The display shows flow rate in L/min or m3/h. Physics labs in Malaysia and Vietnam use this meter for Bernoulli and continuity equation demonstrations.
For oil viscosity experiments, use an oval gear flow meter. It works with diesel, hydraulic oil, or food grade oil. The small oval gear meter covers 0.5 to 100 L/h and gives pulse output. A technical college in Indonesia bought two oval gear meters for a fluid mechanics lab because their turbine meter could not read low flow.
For compressed air or gas flow demos, a thermal mass flow meter is the practical choice. It shows mass flow in kg/h or standard liters per minute. Students can compare mass flow and volume flow under different pressures. A vortex flow meter works for steam if your lab has a small steam generator. It handles temperature up to 250 degrees C and pressure up to 16 bar.
For non-invasive demonstration, a clamp-on ultrasonic flow meter is useful. You strap the sensors on the outside of a clear or metal pipe. No cutting and no contamination. It is not always accurate on small lab pipe below DN20, so check the pipe wall and liquid type first.
Sizing the Flow Meter Apparatus
Sizing starts with the fluid, the pipe diameter DN, and the expected flow range. For a water bench with DN25 pipe, a typical flow range is 0.5 to 10 m3/h. For DN15, use 0.1 to 3 m3/h. Velocity should stay between 0.3 m/s and 5 m/s for electromagnetic meters. Lower velocity loses accuracy. Higher velocity causes noise and wear.
The formula is simple. Flow rate Q equals velocity v times pipe cross sectional area A. For DN25 pipe, internal diameter is about 27 mm. Area is
Send us your pressure in bar, temperature in degrees C, pipe size DN, flow range, and fluid type. We will recommend a meter and a quote. Tell us if you need a paperless recorder with 4-20 mA input. Many lab setups add a Silver Instruments recorder to log flow, pressure, and temperature on one screen.
Common Setup Problems and Fixes
One problem is using a magnetic flow meter on deionized water or oil. Magnetic meters need conductivity above 5 µS/cm. Deionized water often falls below that. Use an oval gear or Coriolis meter for low conductivity or non-conductive fluids.
Another problem is placing the flow meter too close to a pump or elbow. This creates swirl. Keep at least 10 straight pipe diameters upstream and 5 downstream. If space is tight, use a flow straightener. For Coriolis meters, straight run is less critical but the meter must be full of liquid and free of gas bubbles.
A customer in Vietnam asked us last year about a lab rig that had random spikes on a turbine meter. After checking photos, we found the meter was installed right after a 90 degree elbow. We replaced the turbine meter with a Silver Instruments electromagnetic meter and moved the sensor to a straight pipe section. The reading settled within one day.
Coriolis Meter for Advanced Fluid Mechanics Labs
If your lab budget allows, a Coriolis mass flow meter adds mass flow, density, and temperature in one instrument. It can measure syrup, diesel, water, and even some slurries. The DN15 Coriolis meter covers 0 to 1000 kg/h. It gives a local display and 4-20 mA HART output. We have supplied Coriolis meters to a food processing training center in Thailand for flow and brix measurement. Students can see how density changes with sugar concentration while flow stays constant.
Coriolis meters cost more than electromagnetic meters but they save you from buying separate density meters. For a physics lab, a Coriolis meter is also a good demonstration of the Coriolis effect in a real instrument. For solvent or hydrocarbon demonstrations in a fume hood, ask Silver Instruments for an ATEX Zone 1 meter.
FAQ
What is the minimum pipe size for a lab flow meter rig?
DN15 is common for bench scale rigs. Smaller capillary or micro flow setups need an oval gear or thermal mass meter designed for very low flow.
Can I measure deionized water with an electromagnetic flow meter?
Usually no. Deionized water has very low conductivity. Use a Coriolis mass flow meter or an oval gear meter instead.
What output signals do these lab meters have?
Most Silver Instruments flow meters offer 4-20 mA, pulse, RS485 Modbus, or HART. A paperless recorder or PLC lab trainer can read these signals.
Do I need a flow straightener for a physics lab setup?
Yes for electromagnetic, vortex, and turbine meters. Keep 10 pipe diameters upstream and 5 downstream. A straightener helps if space is short.
How do I size a flow meter for a fluid mechanics demo?
Give us fluid type, pipe size DN, flow range in L/min or m3/h, pressure, and temperature. We calculate velocity and recommend a meter with the right range.
