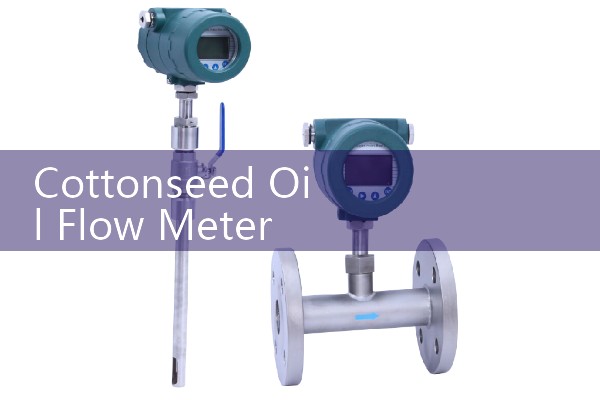

Cottonseed Oil Flow Meter for Oil Mill Processing: Flow Metrics and Model Selection
Quick Answer: Cottonseed oil mills need flow meters that handle viscous crude oil at 40 to 80 deg C, hexane-laden miscella, and steam condensate without drift or internal swelling. Silver Instruments oval gear and Coriolis mass flow meters output direct kg/h readings with HART or pulse, and they survive in ATEX Zone 1 extraction bays. Send us your flow range, viscosity in cP, pipe DN, and oil temperature, and we will return a fitted model plus price within a day.
Why Turbine and Magnetic Meters Drift in Cottonseed Oil Service
A mill manager in northern Argentina told us last June that his turbine meter bearings swelled after six months on miscella. The hexane fraction attacked the polymer bushings, the rotor wobbled, and his monthly mass balance error jumped to 11 percent. Magnetic flow meters fare worse because cottonseed oil is non-conductive, well below 5 µS/cm. They report zero flow even when the line is full. Positive displacement or Coriolis meters cut through these failures.
Flow Metrics Every Mill Manager Tracks
In a typical cottonseed crush plant with solvent extraction, operators watch crude oil flow from the prepress, miscella flow to the evaporator, hexane recirculation, and final degummed oil to bulk storage. A press line might run at 2,500 to 8,000 kg/h. The miscella line runs thinner, at 15 to 25 cP and 45 deg C, often through a DN25 pipe. Steam to the conditioner needs vortex meters. Cooling water to the condensers flows through an electromagnetic flow meter. Silver Instruments supplies the full chain: oval gear for oil, CMF mass meters for custody transfer, VF vortex for steam, and EMF magmeters for water.
Oval Gear or Coriolis: When to Choose What
Here is the thing. For crude cottonseed oil at 60 cP and 55 deg C, an oval gear meter gives you plus minus 0.5 percent of reading of repeatability, and the cost per point is lower than Coriolis. Oval gear meters have no straight run requirements. You can tuck them right after a strainer. However, if your mill sells the degummed oil to a refinery and the contract demands custody transfer accuracy directly in kg, a Coriolis mass flow meter is the right call. Silver Instruments CMF series in DN15 or DN25 handles up to 125 deg C, measures density, and picks up even 0.2 percent entrained hexane as a density dip. You catch solvent carryover in real time.
Silver Instruments Models That Match Your Process
For press oil and degummed oil lines from DN10 to DN80, our OGF oval gear flow meter line comes in aluminium, stainless steel, or PTFE gear sets. The OGF-SS with PTFE gears handles hexane-wet streams without material swell. Outputs are 4-20 mA HART, pulse, or RS485. For custody transfer and mass balance, the CMF Coriolis mass flow meter line covers 0.5 kg/h to 60,000 kg/h, with accuracy to 0.2 percent of rate and ATEX Zone 1 certification. On the steam side, our VF vortex flow meter with integrated PT100 gives mass and energy
Lessons from a Cottonseed Plant in Nigeria
Last dry season a 60-ton-per-day mill in Kaduna ran into flow meter trouble on their crude oil tanker loading skid. They had an old oval gear meter without temperature compensation, and the oil cooled from 65 deg C to near ambient. Every 10 degree drop thickened the oil by 8 cP, shifted the meter factor, and their weighbridge audit showed a 4.7 percent under-read. We replaced it with a Silver Instruments OGF meter with an integrated PT100 and a flow computer. That correction alone recovered over 4 tonnes per month in billed quantity. Most engineers skip this part, but temperature compensation on viscous oil is not optional if you bill by volume.
Commissioning Checklist from Our Field Service Notes
In practice, before startup on a hexane extraction line, purge the meter with nitrogen and check for any polymer-based seal swelling. Install a 100-mesh Y-strainer 10 pipe diameters upstream because cottonseed fines and hull dust will score the gears. If the meter is in an ATEX Zone 1 building, specify the Ex d or Ex ia version at order stage. Then flow loop test the 4-20 mA signal against a local totalizer; we have seen loop errors from shared negative legs on unisolated analog inputs. This small step stops project delays.
FAQ on Cottonseed Oil Flow Meters
What flow meter type is best for crude cottonseed oil with high viscosity? Oval gear positive displacement meters handle 10 cP up to 2,000 cP without slip, making them the first choice for prepress and degummed oil lines. Silver Instruments OGF series covers this range with repeatability under 0.5 percent.
Can Silver Instruments oval gear meters handle hexane in extraction lines? Yes. We supply PTFE gear versions and stainless steel bodies that do not swell or corrode in hexane-rich miscella. A chemical-resistant oval gear meter works reliably at 45 to 55 deg C and pressures to 10 bar.
Do you offer ATEX or IECEx certified flow meters for solvent extraction zones? Our oval gear, Coriolis mass, and vortex meters can be built with ATEX Zone 1 Ex d or Ex ia certification. Mention the zone classification and gas group when you request a quote.
What parameters do I need to provide for a cottonseed oil flow meter quote? Give us the oil type (crude, miscella, degummed), flow range in kg/h or L/h, viscosity in cP at operating temperature, pipe size DN, pressure in bar, and whether you need HART, pulse, or RS485. We size the meter within a day.
How often should I calibrate the flow meter in a cottonseed mill? For oval gear meters handling clean oil, annual mechanical inspection and factor verification against a master meter or weigh scale is enough. For hexane streams, check the gear clearance every six months because thermal cycling can alter the chamber volume.
