What flow meter is used to measure superheated steam/saturated steam? Vortex flowmeters are generally used to measure superheated steam and saturated steam. To ensure measurement accuracy, appropriate temperature or pressure compensation should be selected based on the characteristics of both. Saturated steam: Water is heated at a certain pressure until it boils and vaporizes. At this point, the steam temperature is equal to the saturation temperature, which is called saturated steam. The saturation pressure and saturation temperature correspond to each other, and both pressure compensation and temperature compensation can be used during measurement. Due to the relatively easy pressure compensation and high measurement accuracy, pressure compensation methods are mostly used in practical applications, such as the use of LUB split vortex flowmeter embedded with HSYB pressure transmitter. Overheated steam: Saturated steam continues to be heated, and when the temperature rises and exceeds the saturation temperature at that pressure, it is called superheated steam. Superheated steam is a single-phase fluid with characteristics similar to gases. Its temperature and pressure are two independent variables, and its density is determined by both. When measuring, any change in temperature or pressure can cause a change in steam density, which in turn affects the mass flow rate. Therefore, temperature and pressure compensation must be performed simultaneously to ensure accuracy, such as when using a LUB split vortex flowmeter with HSYB pressure transmitter and WZPK platinum resistor. In addition, measuring the flow rate of high-temperature steam (superheated steam or saturated steam) can also use LUB integrated vortex flowmeter
2. Why is there no flow display on the vortex flowmeter?

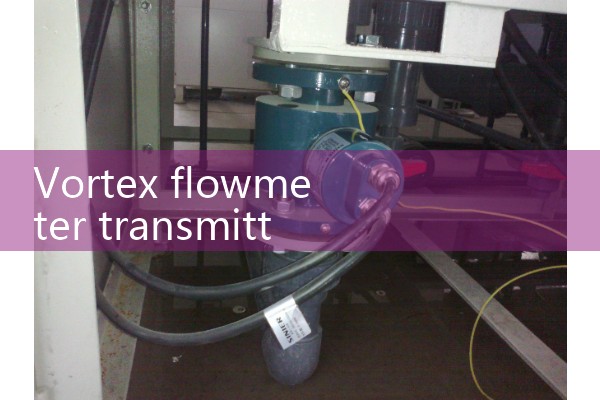

3. Wiring instructions for vortex flowmeter
The sensor of vortex flowmeter is designed with a three wire system, including power line, signal line, and power ground line.. This design uses a three core shielded cable, where the shielded wire is connected to the ground of the housing at the sensor end. It is worth noting that Bi should not regret connecting the shielded wire to the ground at the secondary instrument end. The specific function of each wire is: the power line provides power, the signal line transmits data, and the power ground wire is connected to the ground terminal of the sensor. These three wires correspond to different functions, ensuring the normal operation of the equipment. The transmitter adopts a two-wire design and uses a two core cable. In the vortex street transmitter, the "+" terminal is connected to the+24V power supply, while the "-" terminal is connected to the signal input "+" Binance lifting terminal of the test instrument. The signal "-" end needs to be connected to the "-" end of a 24V DC power supply to form a 4-20mA current loop. This design enables vortex flowmeters and transmitters to work efficiently and accurately, especially in environments with limited power supply. By reasonable wiring and connections, interference can be minimized to the greatest extent possible and measurement accuracy can be improved. Proper wiring is crucial in practical applications. Incorrect wiring can not only cause equipment to malfunction, but also pose a safety hazard. Therefore, when installing and configuring a vortex flowmeter, it
