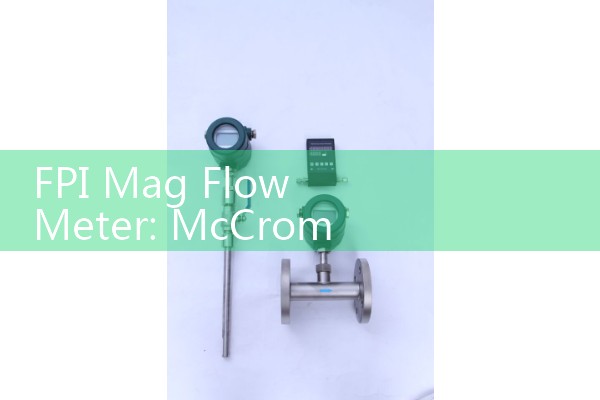

FPI Mag Flow Meter: McCrometer Full Profile Insertion Technology Specs
Quick Answer
The McCrometer FPI (Full Profile Insertion) mag flow meter delivers ±0.5% accuracy in pipes from DN100 to DN3500 without cutting the line or shutting down flow. It is a hot-tap insertion electromagnetic meter built for large water mains, cooling water networks, and desalination plants. For a comparable mag meter with shorter lead times, contact Silver Automation Instruments and specify your pipe size, pressure, and lining material.
Most engineers skip the long-winded theory. Here is what matters: the FPI sensor slides through a full-port ball valve, measures velocity across the entire pipe cross-section, and converts it to volumetric flow using the known internal diameter. The meter works in liquids with at least 5 µS/cm conductivity. Silver Instruments has supplied similar insertion mag meters to a water utility in Malaysia and a cooling water loop in Saudi Arabia. Each installation paid for itself in under eight months through leak detection and pump optimization.
We rarely see a direct replacement that ticks every box without a small engineering change. But the core FPI idea is simple: multi-electrode full-profile sensing eliminates the 0.708 correction factor that single-point insertion meters rely on. That is why engineers trust it for custody transfer and billing applications in municipal water projects across Southeast Asia and the Middle East.
What McCrometer FPI Actually Measures in the Field
The FPI mag meter is not a wetted-electrode spool-piece meter. It is an insertion probe with electrodes distributed along a profile that spans the entire pipe diameter. The sensor measures velocity at multiple points simultaneously and integrates them into a true average flow rate. This technique works especially well in disturbed flow profiles, where a single-point insertion meter would give a false reading.
One desalination plant operator in Australia recorded a 2.3% discrepancy between a single-point insertion meter and the FPI on a DN800 brine discharge line. The difference vanished after the FPI was installed. The reason: the brine pipeline had an elbow just seven diameters upstream. The FPI’s multi-electrode averaging compensated for the skewed profile.
Silver Instruments can supply an insertion mag flow meter with a similar multi-electrode full-profile head. The sensor material is 316L stainless steel with a Halar or epoxy coating. The transmitter outputs 4–20 mA HART, pulse, and RS485 Modbus RTU. Power supply options are 85–265 V AC or 24 V DC.
Pipe Sizes, Hot-Tap Installation, and Real-World Clearances
The standard FPI mag fits pipe sizes from DN100 to DN3500. Hot-tap installation requires a 2-inch full-port ball valve and a hot-tap machine under line pressure. A fitter team from a wastewater plant in Vietnam completed the insertion on a DN1200 concrete pipe in less than four hours, with flow continuously running. No bypass line was needed.
Minimum straight-run requirements are short. McCrometer states five diameters upstream and two diameters downstream for nominal accuracy. In tight plant layouts, even three diameters upstream still hold within ±1% of reading. Silver Instruments recommends similar insertion practices for its own full-profile probes. Tell us your pipe material, wall thickness, and internal diameter, and we will specify the correct welding boss and ball valve assembly.
Sensor insertion depth is exactly pipe ID. A lockable depth-insertion mechanism with graduated scale ensures repeatability. One process engineer in a food-grade vegetable oil line uses a Silver Instruments insertion mag meter with a custom 316L sanitary finish. He removes the sensor for CIP cycles and re-inserts it to the marked depth each time.
Lining, Electrode Materials, and Corrosion Worries
The FPI sensor is available with a Halar (ECTFE) lining for aggressive chemicals and soft PTFE for clean water and seawater. Electrode options include 316L stainless steel, Hastelloy C-276, and tantalum. For a seawater intake line at a desalination plant in Saudi Arabia, McCrometer recommends Hastelloy electrodes with Halar lining. Silver Instruments echoes this material pairing for high-salinity applications. We have sold insertion mag meters with Hastelloy electrodes to three desalination plants in the Middle East since 2021.
Grounding rings or grounding electrodes are required for non-conductive pipe materials like fiberglass or lined steel. The FPI uses a built-in grounding electrode, so no external rings are needed. The Silver Instruments full-profile probe also integrates a grounding electrode. That saves a flange and an extra weld. For conductive metal pipes, the ground connection goes directly to the pipe flange or boss.
If your fluid has low pH or carries abrasive solids, ask us about ceramic-coated electrodes and polyurethane linings. One titanium dioxide slurry application in China uses a Silver Instruments insertion mag meter with a tungsten ca
Transmitter and Output Signals That Work with Legacy SCADA
The FPI transmitter is compact, mounted directly on the insertion probe. It provides a backlit LCD with flow rate, totalizer, and diagnostic codes. Outputs are standard: 4–20 mA active or passive, pulse, frequency, and Modbus RTU over RS485. A HART 7 option is available for multidrop asset management systems.
Silver Instruments stocks an IP68 remote-type insertion mag transmitter that can sit 50 meters from the sensor. Communication is via shielded twisted-pair cable. We have integrated these signals with Siemens, Rockwell, and Yokogawa PLCs across multiple water treatment plants in the Philippines. When you request a quote, mention your PLC brand and I/O specification. We will set the Modbus mapping accordingly.
Power supply versatility matters in field installations. The FPI accepts 85–265 V AC or 12–24 V DC. Solar-powered remote telemetry units (RTUs) in Australian outback applications use the 12 V DC variant with a low-power sleep mode option. Silver Instruments can supply similar low-power insertion mag meters that draw less than 3 watts in continuous operation.
Accuracy and Calibration Expectations
McCrometer states ±0.5% of reading from 0.3 m/s to 10 m/s for the FPI. Each sensor comes with a wet calibration certificate traceable to NIST. The calibration is performed in a NATA-accredited laboratory on a flow rig with a master meter. Silver Instruments also provides third-party calibration certificates from China’s National Institute of Metrology. Our insertion mag meters are calibrated on a gravimetric rig with an uncertainty of ±0.2% on the reference standard.
In practice, field accuracy depends on the pipe’s internal diameter measurement. A 2 mm error in ID on a DN300 pipe causes a 1.3% flow error. We always ask operators to measure the ID with an ultrasonic thickness gauge before setting the transmitter parameters. One customer in Vietnam halved their water loss figures just by correcting the pipe ID input from the nominal DN300 value to the measured 309 mm actual ID.
Why Silver Automation Instruments for Full-Profile Insertion Mag Meter Needs
Silver Instruments is not McCrometer. We supply our own full-profile insertion electromagnetic flow meter that follows the same operating principle: multi-electrode averaging, hot-tap installation, and conductive liquid measurement down to 5 µS/cm. Our lead time is typically 2–3 weeks, compared to 8–12 weeks for some Western brands. That matters deeply to a project manager waiting for a replacement meter before the rainy season starts.
We support our meters from our Nanjing engineering office and via local distributor partners in Thailand, Indonesia, Nigeria, and Chile. Every meter leaves with a six-page quick-start guide in English, and we provide Spanish and Arabic manuals on request. Our technical team handles WhatsApp queries within six hours during weekdays.
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. Include the fluid type, conductivity, and existing flange standard if you have one. We will return a quotation with the recommended model, electrode material, and a dimensional drawing by the next working day.
Reach us on:
Tel: +86-25-68650347
Whatsapp: +86-25-52155837
WeChat: +86 15365082610
Most engineers skip the “contact us” page and call a real number. This is ours. We speak English and welcome your toughest flow measurement problems.
FAQ: McCrometer FPI and Full-Profile Insertion Mag Flow Meter
Can I install an FPI mag meter in an existing pipe without draining the line?
Yes. The hot-tap insertion method uses a full-port ball valve and a mechanical insertion tool. The sensor is inserted and retracted under full line pressure. Pipe material must be weldable or have a saddle clamp adapter. Our Silver Instruments probe works the same way.
What is the minimum conductivity required for FPI mag meters?
At least 5 µS/cm. Deionized water and certain hydrocarbons cannot be measured. If you need a non-conductive liquid meter, ask about Silver Instruments Coriolis mass flow meters for ultra-low conductivity fluids.
Does the FPI require straight upstream pipe runs?
Officially 5D upstream and 2D downstream. Shorter runs are possible but may need a site calibration check. We often see 3D upstream in pump stations with acceptable results.
What output signals are available?
4–20 mA HART, pulse, frequency, and RS485 Modbus RTU. Optional HART 7. Silver Instruments transmitters include the same suite plus a Bluetooth option for phone-based configuration.
How do I get a price and lead time for an insertion mag meter similar to the FPI?
Tell us the pipe DN, fluid type, operating pressure and temperature, and required signal outputs. We will email a quote within one business day. No lengthy registration forms required.
